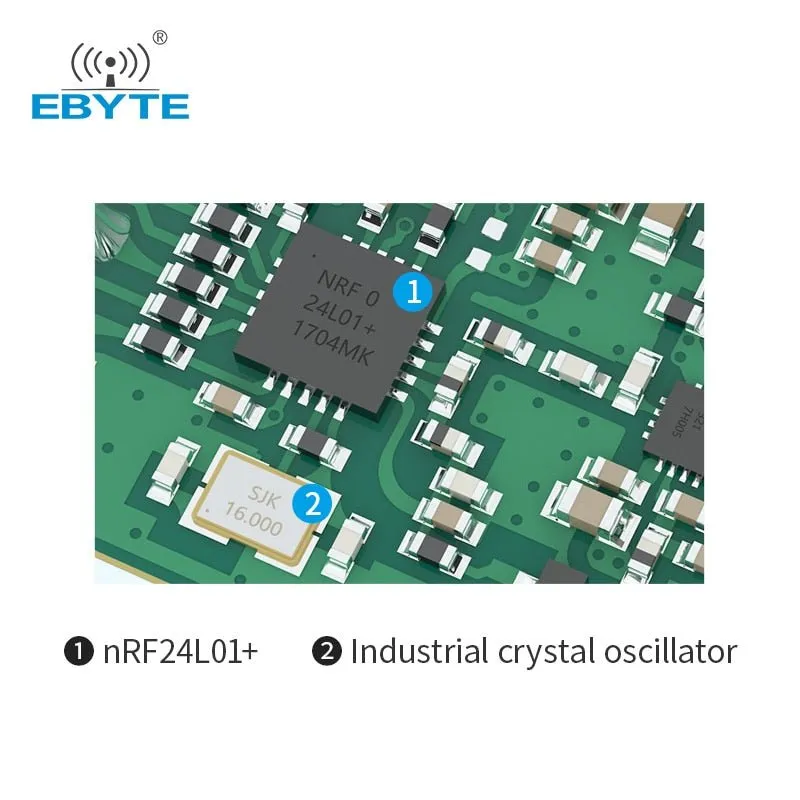

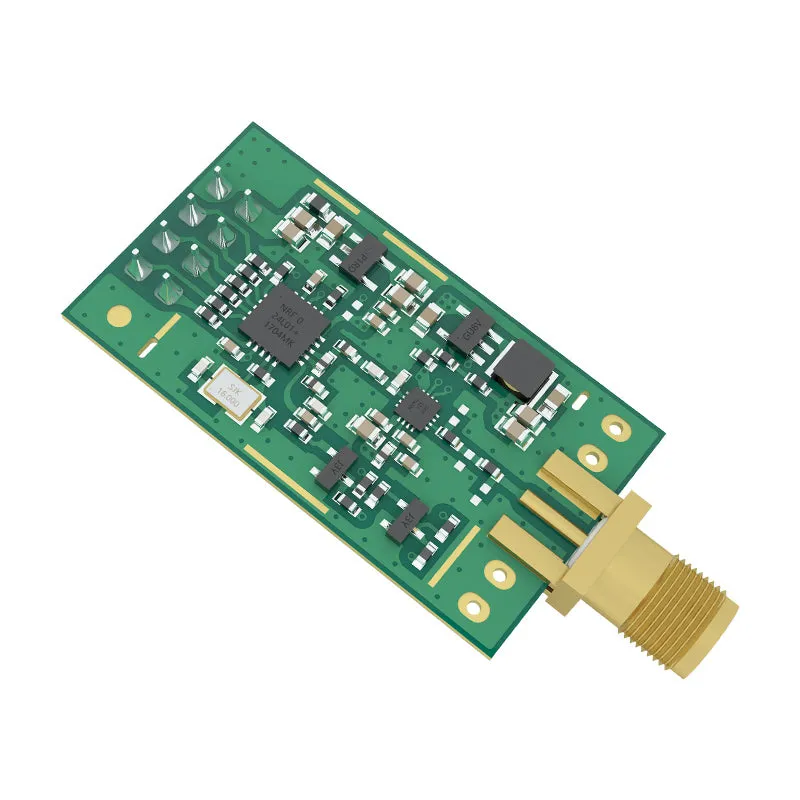

E01 series E01-2G4M27D 2.4Ghz wireless transceiver module based on nRF24L01P with SPI interface features small size and various application usage.E01 series modules are embedded with imported electronic parts, such as industrial crystals with high precision and TCXO. Using only the highest quality components, the E01 series 2.4Ghz wireless transceiver module ensures precision and reliability in various applications. With a small size and SPI interface, it's the perfect solution for your wireless communication needs.
Brand Name: EBYTE
Origin: Mainland China
Condition: New
Type: Drive IC

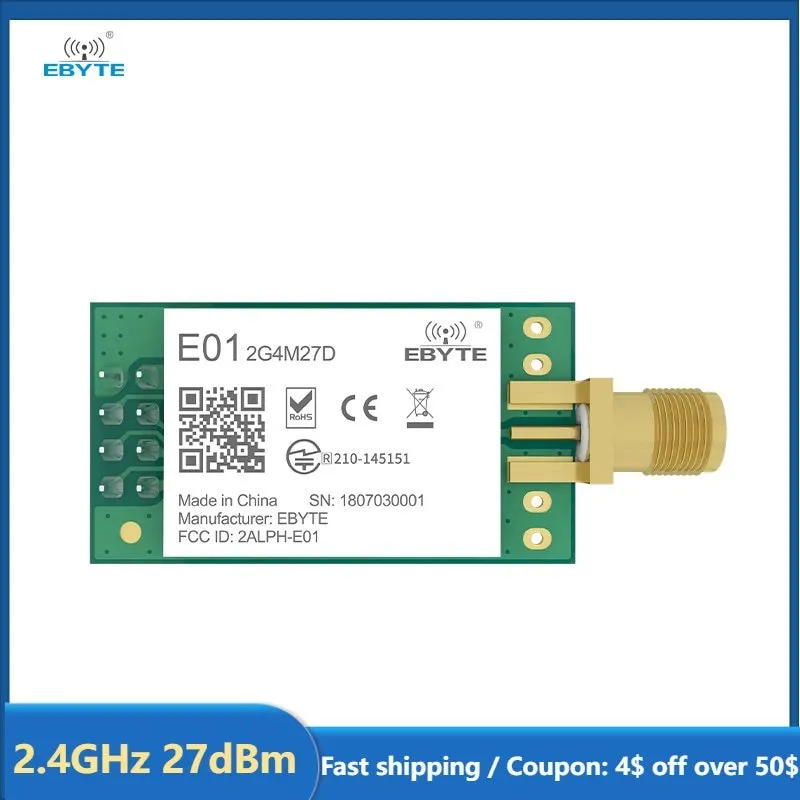

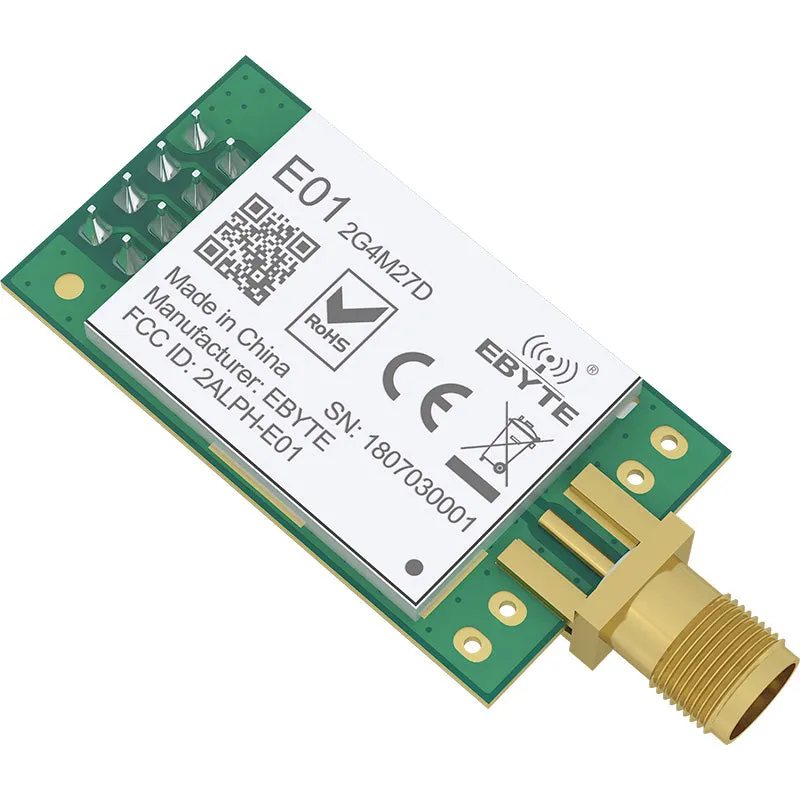

Model Number: E01-2G4M27D
Supply Voltage: 2.5 - 5.5 V
Dissipation Power: 500mW
is_customized: Yes
Application: Computer
Package: DIP
Type: Wireless Transceiver Module
IC: nRF24L01P (nRF24L01 PA LNA)
Frequency: 2.4~2.525GHz
Power: 27dBm
Distance: 5km
Interface: SPI
Weight: 5.2±0.1g
| RF Parameter | Value |
Remark |
| Working frequency |
2400~2525 MHz |
Default: 2.4GHz (16MHz oscillator) |
| Transmitting power | 27 dBm |
Max. Power (500mW) |
| Receiving sensitivity |
-99 dBm |
Air data rate: 250kbps |
| Air data rate | 250k~2Mbps |
Default: 250kbps |
| Test distance | 5000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
| Hardware Parameter | Value |
Remark |
|

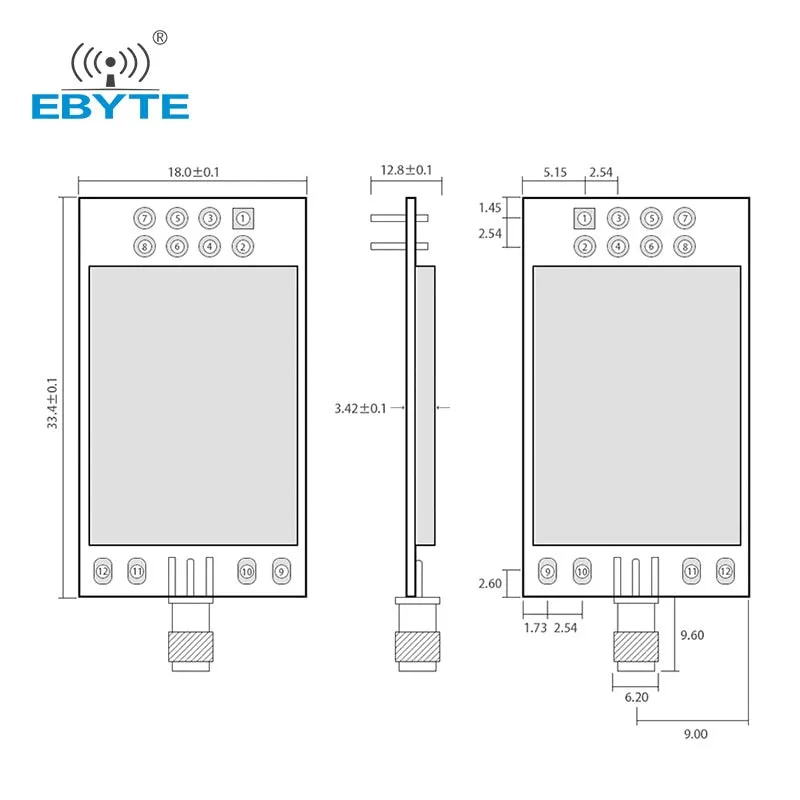

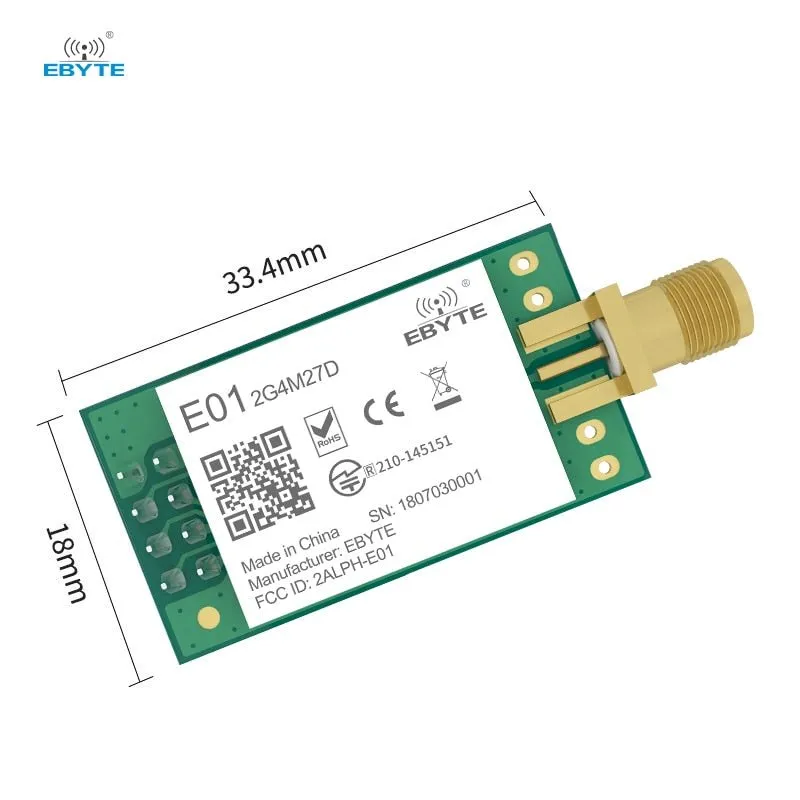

Size |
18 * 33.4 mm |
Without SMA |
|

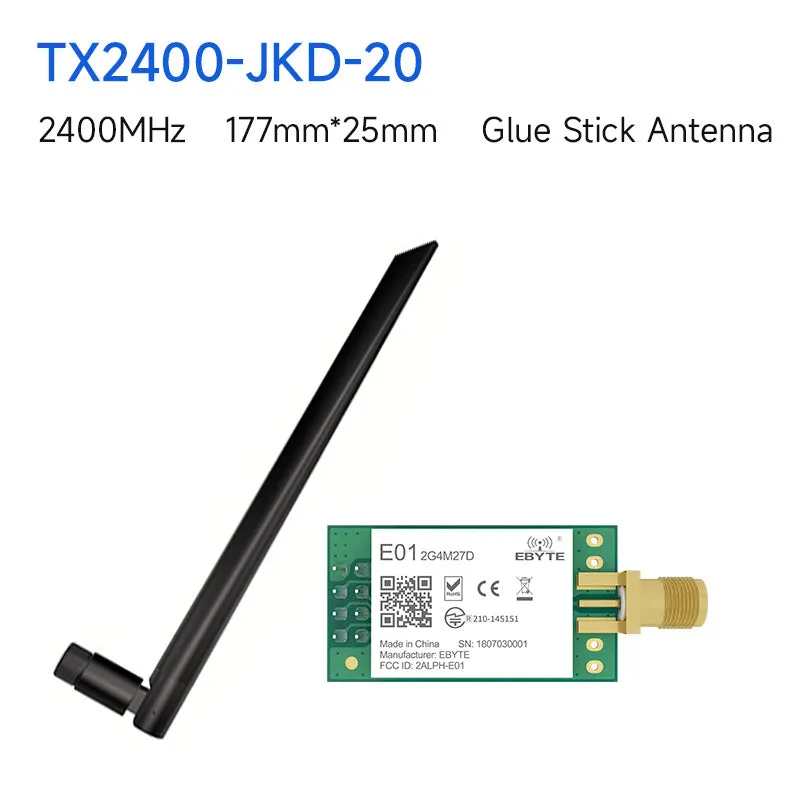

Antenna type |
SMA-K |
|
|

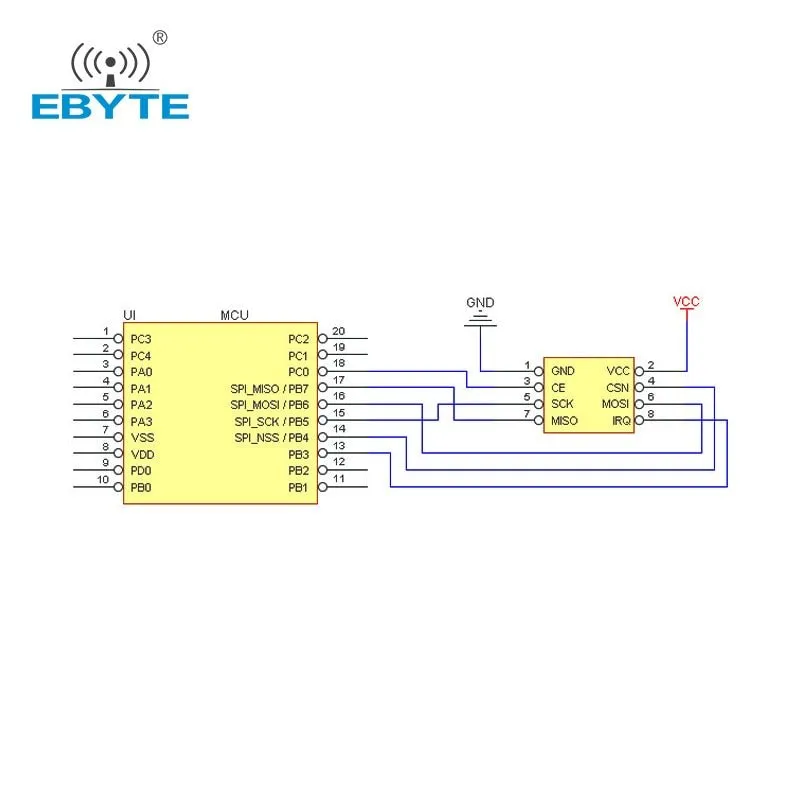

Communication interface |
SPI |
|
|
Package |
DIP |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
2.5 | 3.3 | 5.5 | V | |
| Communication level | 2.0 | 3.3 | 3.6 | V | |
| Transmitting current |
480 | 490 | 500 | mA | 3.3V |
| Transmitting current |
380 | 390 | 400 | mA | 5.0V |
| Receiving current |
22 |
23 | 24 | mA |
3.3V |
| Receiving current |
21 |
22 | 23 | mA |
5.0V |
| Sleep current |
450 |
455 | 460 | μA | |
| Operating temperature |
-40 | 20 |
85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
125 | ℃ |
